An e-bike’s motor dictates its identity on a fundamental level. It determines how power is delivered, how the bike’s weight shifts, how much power it consumes, and most importantly, how much maintenance it requires. Just as you wouldn’t buy a car (hopefully) without checking if it is front, rear, or all-wheel drive, you shouldn’t buy an e-bike till you know the difference between front, rear, and mid-drive motors.

E-bikes are no longer just rentals that you pay for by the minute or by the mile. Direct-to-consumer retailers have flooded the market with several options, each advertised similarly - range, top speed, and comfort. Each advertisement also heavily features jargon, be that ratings, certifications, suspension travel, or something else.

Here, we hope to bust that jargon. Now, we hope to tackle the jargon around motors - the proverbial engines in the e-bike industry. Just as you could spend hours debating a V6 and V8, or an in-line and turbo-charged engine, there are quite a few opinions and use-cases for each motor’s placement, and the function they each serve.

Let’s dissect these placement options one by one.

Mid-Drive-Motors

Much like its placement, the mid-drive motor is neither common nor uncommon among manufacturers. Positioned directly within the bottom bracket of the e-bike, the nexus of where the pedals meet, these motors deliver power to the bike’s drivetrain (chain & gear system) instead of either wheel. Since the motor spins independently of either wheel, this type of motor can deliver power uniformly uphill, unencumbered by the slow rotations of a wheel or gear.

The sensation of driving a premium mid-drive motor is organic. Modern mid-drive motors, much like all motors, rely on sophisticated torque and cadence sensors to deliver power to your feet. These sensors help amplify your natural cycling pattern rather than deliver a jarring burst of acceleration.

There are inherent advantages to its placement: since it is closest to the bike’s natural centre of gravity, the ride always feels balanced and lightweight, neither pushing nor pulling you. Their power being funnelled through the drivetrain rather than to the wheels makes it much easier to hike up steep hills with minimal effort and down them with greater control.

However, the trade-off is definitely cost. These are extremely complex systems, and require custom frame construction, so an affordable conversion kit won’t cut it. Another disadvantage is the inevitable wear on the chain and gear system. Seeing as all of the power is being delivered straight to your gears, they take a beating, and if they are made with poor materials or assembled shoddily, rest assured, you’ll be spending a fortune to replace it in about a year’s time.

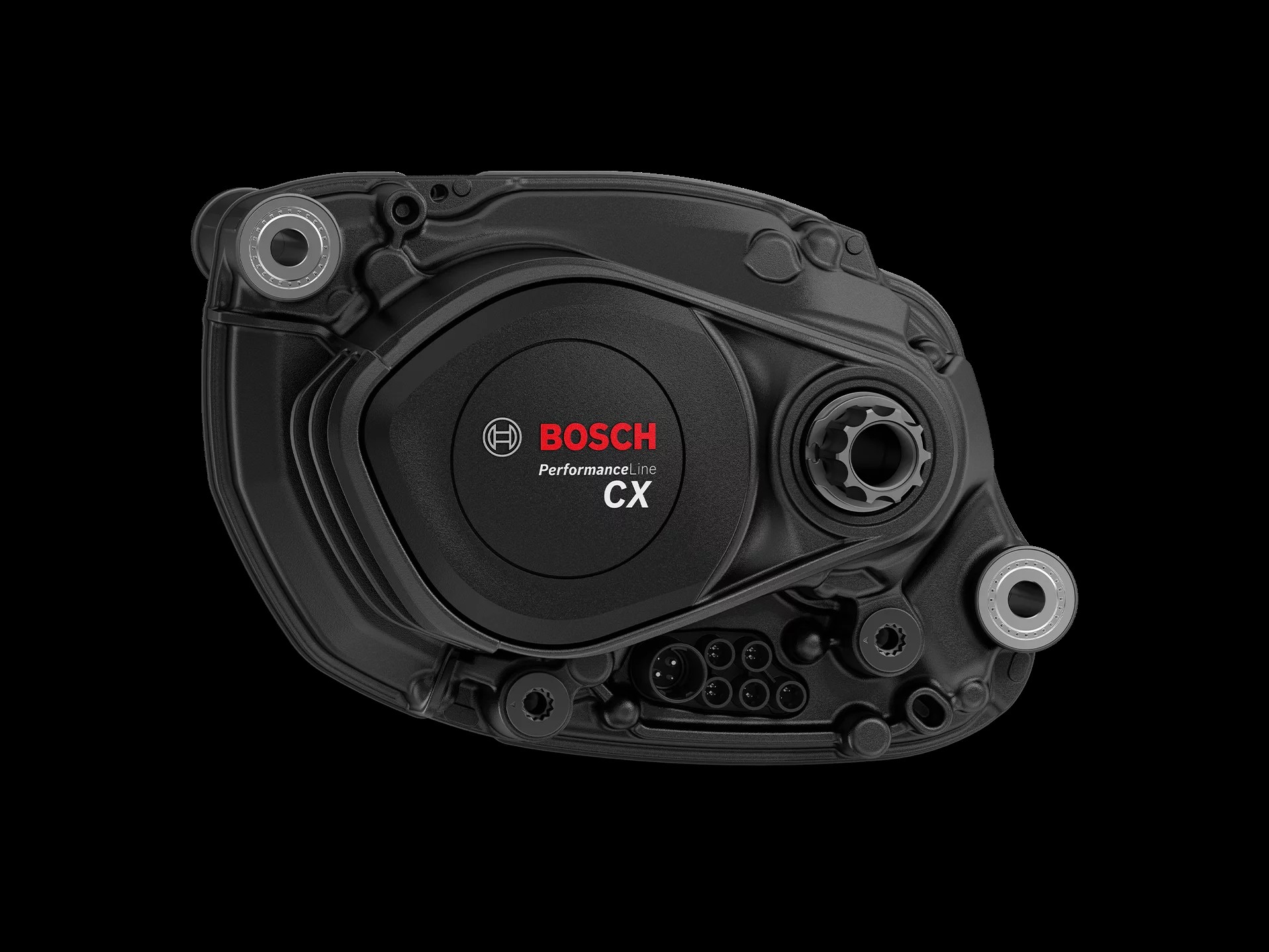

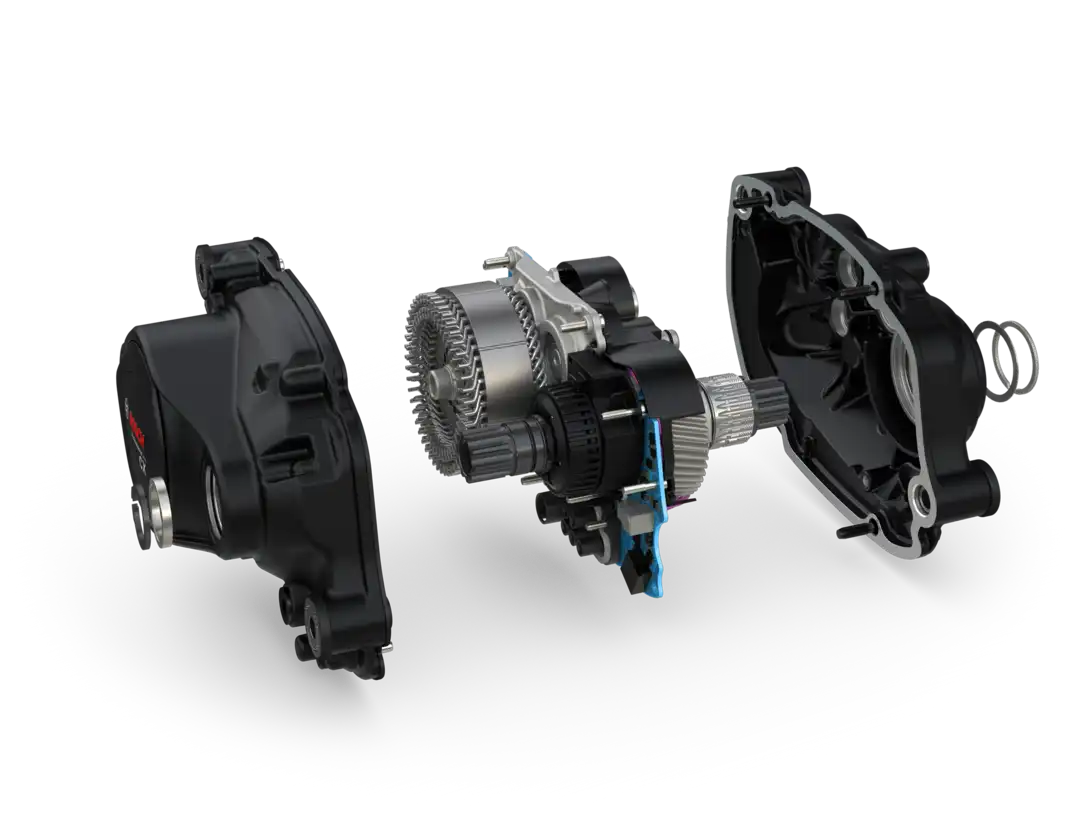

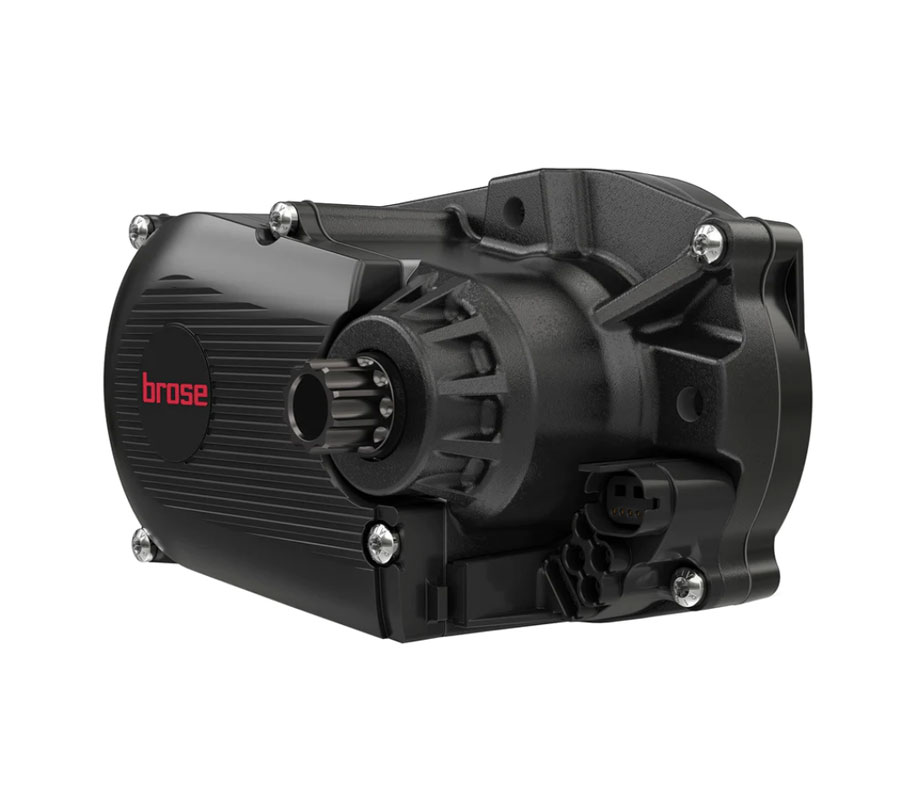

Our picks for the best in-class mid-drive motors are the Bosch Performance Line CX and the Brose Drive-S Mag. The Bosch Performance Line CX powers bikes like the 2026 Santa Cruz Vala X0 and the 2026 Riese & Müller Charger5. With an optimal power system, the Bosch motor can deliver 85 Nm of torque and weighs a mere 2.8 kg. The Brose Drive-S Mag is used on bikes like the Specialised Turbo series and can deliver a comparable 90 Nm of torque when sufficiently powered. It weighs more than the Bosch at 2.9 kg.

Rear Hub Motors

Rear-hub motors are the most commonly used type of motor in the modern e-bike landscape. These motors completely circumvent the bike’s transmission and directly propel the rear wheel. This architecture gives the rider a distinct “pushing” feel, very reminiscent of most bicycles, motorbikes, or motor scooters.

Since rear-hub motors operate independently of the drivetrain, they are far less prone to mechanical failures. Should the worst happen and your chain snaps a few miles from home or a service station, most rear-hub motors have a throttle feature that lets you spin the wheels without pedalling to get you where you’re going.

These motors usually have simpler (and cheaper) cadence sensors that only deliver power when you press down on a pedal, regardless of the pressure you apply. When used, these motors leave the drivetrains less prone to wear because they drive wheels rather than gears and chains. They usually also fit universally onto existing pedal bikes with minimal mechanical work.

However, they leave the rear feeling heavy, and the bike can sometimes feel like it's pushing you too fast, leaving you out of control. Even if your e-bike has a gear system, these motors cannot use it, so they sometimes overheat during prolonged uphill climbs. Crucially, changing a flat tyre is a huge production that requires specialised wiring to be disconnected, rather than just replacing it at home.

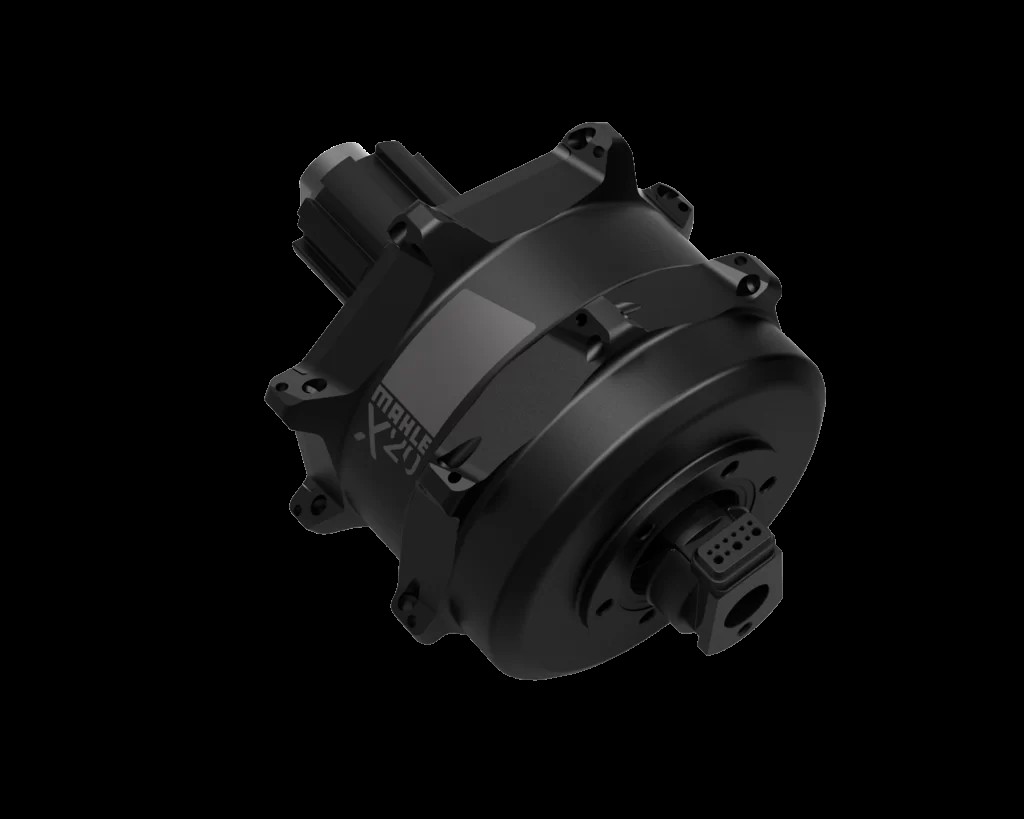

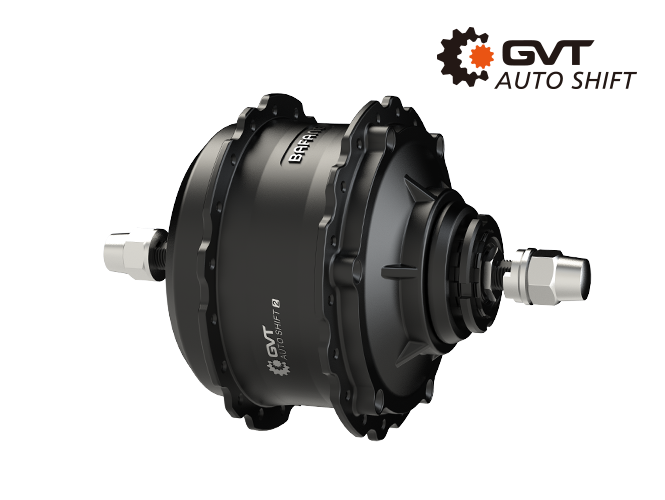

Our picks for rear-hub motors to look for when you buy your next e-bike are the Bafang H700, affordable and reliable, which can deliver 45 Nm of torque and weighs 3.2 kg. The Bafang runs bikes like the ADO Air 20 Pro and the Estarli H700. Or you can look for the Mahle X20, which you can connect via Bluetooth, delivers 55 Nm of torque, weighs 3.2 kg, and is featured on bikes like the Mandraker Dusty and Dusty XR, and the Orbea Gain.

Front Hub Motors

Housed strictly in the front wheel assembly, these motors essentially pull the entire cycle forward. These are the least common finds in e-bikes. But they are the closest you can get to an “all-wheel-drive” experience, as you pedal the rear wheels while the motor powers the front ones.

You cannot find these motors in high-performance factory builds, as the front wheels have enough to do with steering and braking. Adding a heavy motor to the mix only decreases durability and may lead to expensive repairs down the line. However, niche enthusiasts, such as DIY converters, like to use this type of motor to turn their pedal bikes into e-bikes.

This layout clearly separates the electrical and mechanical components of your e-bike, making them easier to repair. Should you pair it with rear batteries, it makes for a well-balanced cycle, too. However, these motors are prone to spinning out due to the lower friction of the front wheels, making the rig less responsive to steering and heavier.

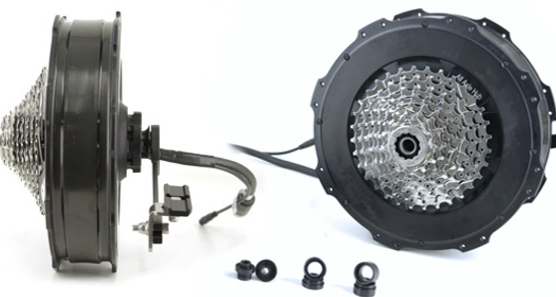

While not many e-bikes use this type of motor, we cannot reliably recommend any bike pre-fitted with it. However, the aforementioned enthusiasts love the Grin Technologies All-Axle Motor Hub. Depending on how much battery you choose to install, this motor can generate up to 1000 W of power (local restrictions notwithstanding).

Final Verdict

There is no “perfect” architecture for motors. Just as some drivers love a Front Wheel Drive car for its responsiveness, others love a four-wheel drive for its slickness. If you want a trouble-free, low-maintenance workhorse, choose a rear-hub motor. Are you a mechanically inclined adventurer? Choose a front-hub motor. Universally, though, look for UL certification for safety, IP certification for waterproofing, and, most importantly, test-drive it when you can.
